What Defines CNC Precision Machining?
In the realm of manufacturing,
CNC precision machining stands out for its exceptional accuracy, consistency, and reliability. Let's delve into the key elements that define CNC precision machining:
[caption id="attachment_4298" align="aligncenter" width="635"]

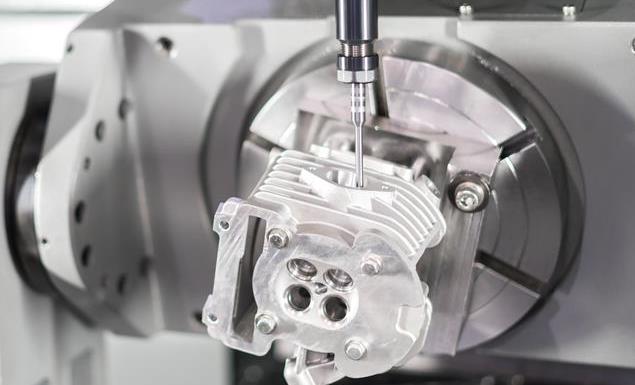

What Defines CNC Precision Machining?[/caption]
Advanced Machining Technology
Subhead: High-Performance CNC Equipment
CNC precision machining relies on state-of-the-art CNC equipment, including multi-axis machining centers, turning centers, and Swiss-style lathes. These machines feature high spindle speeds, rapid tool changes, and precise positioning capabilities, enabling intricate machining operations with unparalleled precision.
Subhead: Precision Tooling and Toolpath Programming
Precision machining demands specialized tooling and toolpath programming tailored to the intricacies of each component. Manufacturers utilize high-quality cutting tools, such as carbide end mills and drills, combined with advanced CAM software to generate optimized toolpaths that maximize efficiency and precision.
Tight Tolerance Control
Subhead: Micron-Level Tolerances
CNC precision machining operates within extremely tight tolerance ranges, often measured in microns (µm) or fractions of millimeters. Components must adhere precisely to specified dimensions and geometric tolerances, ensuring seamless assembly and compatibility with mating parts in complex assemblies.
Subhead: Dimensional Accuracy and Repeatability
Precision machining achieves exceptional dimensional accuracy and repeatability, with deviations typically kept well below ±0.005 inches (0.127 mm) or even tighter tolerances. Consistency across multiple parts and production runs is paramount, facilitated by meticulous process control and calibration procedures.
Rigorous Quality Assurance
Subhead: In-Process Inspection and Metrology
Quality assurance is integral to CNC precision machining, with rigorous inspection protocols deployed throughout the manufacturing process. In-process inspection techniques, such as coordinate measuring machines (CMMs), optical comparators, and surface profilometers, verify part dimensions, surface finish, and geometric features to ensure adherence to specifications.
Subhead: Statistical Process Control (SPC)
Manufacturers implement statistical process control (SPC) methodologies to monitor and analyze machining processes in real-time. By collecting and analyzing data on key process parameters, such as tool wear, spindle speed, and cutting forces, deviations can be detected early, allowing for timely adjustments to maintain optimal performance and quality.
Material Expertise and Selection
Subhead: Machining a Variety of Materials
CNC precision machining encompasses a wide range of materials, including metals, plastics, and composites. Machinists possess expertise in selecting the most suitable materials for each application based on factors such as strength, durability, thermal conductivity, and chemical resistance.
Subhead: Machining Exotic and High-Performance Alloys
In addition to standard materials, precision machining often involves working with exotic alloys and high-performance materials. These materials, such as titanium, Inconel, and advanced engineering plastics, pose unique machining challenges but require precision and expertise to achieve the desired results.
Application-Specific Solutions
Subhead: Customized Solutions for Complex Applications
CNC precision machining excels in delivering customized solutions for complex and demanding applications across various industries. Whether it's aerospace components, medical implants, or automotive prototypes, precision machining offers the flexibility to meet diverse and specialized requirements with uncompromising accuracy and reliability.
Subhead: Prototyping and Low-Volume Production
Precision machining caters to prototyping and low-volume production scenarios where flexibility, speed, and precision are paramount. Manufacturers leverage CNC technology to rapidly iterate designs, produce small batches of parts for testing and validation, and scale up production seamlessly as needed.
Conclusion
In summary, CNC precision machining is characterized by advanced technology, tight tolerance control, rigorous quality assurance, material expertise, and application-specific solutions. By embracing these defining elements, precision machining delivers components of exceptional quality, accuracy, and reliability, meeting the exacting standards of modern manufacturing across a diverse range of industries and applications.
