Understanding CNC Turning
CNC turning is a fundamental machining process utilized in the production of cylindrical components. Let's delve into the intricacies of this versatile manufacturing technique:
1. Operation Principle
CNC turning involves the rotation of a workpiece on a spindle while a cutting tool traverses along its periphery to remove material. This process enables the creation of cylindrical shapes, such as shafts, pins, and bushings, as well as intricate features like threads and grooves.

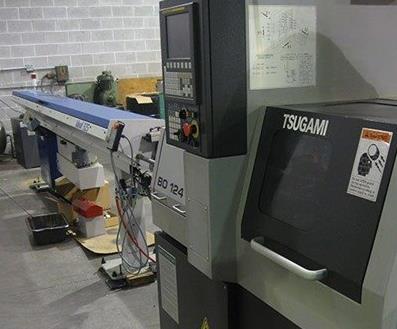

[caption id="attachment_4277" align="aligncenter" width="397"]
Understanding CNC Turning[/caption]
2. Machine Setup
CNC turning centers feature a lathe-like configuration with a spindle that holds the workpiece and a turret or toolpost housing various cutting tools. The CNC controller interprets digital instructions to precisely control the movement of the cutting tool in multiple axes, facilitating accurate machining operations.
3. Material Compatibility
CNC turning is compatible with a wide range of materials, including metals, plastics, and composites. Common materials machined via CNC turning include aluminum, steel, brass, copper, titanium, and engineering plastics like ABS and PEEK.
4. Precision and Tolerances
One of the key advantages of CNC turning is its ability to achieve high precision and tight tolerances. Parts can be machined to exact specifications, with tolerances as tight as a few microns, ensuring dimensional accuracy and consistency.
5. Efficiency and Speed
CNC turning offers rapid production rates and efficient material removal, making it ideal for high-volume manufacturing. Modern CNC turning centers feature advanced spindle speeds, rapid traverse rates, and automatic tool changers, optimizing machining efficiency.
6. Versatility and Complexity
Despite its simplicity in concept, CNC turning can produce complex geometries and features with ease. By utilizing specialized tooling and advanced programming techniques, machinists can create intricate components with varied surface finishes and profiles.
7. Cost-Effectiveness
CNC turning offers cost-effective solutions for both prototyping and production runs. Its efficiency, repeatability, and ability to minimize material waste contribute to overall cost savings compared to traditional machining methods.
8. Surface Finish and Quality
With the right tooling and cutting parameters, CNC turning can achieve excellent surface finishes, reducing the need for secondary finishing operations. This results in parts with smooth surfaces and minimal burrs, enhancing overall quality and aesthetics.
9. Applications
CNC turning finds applications across various industries, including automotive, aerospace, medical, electronics, and defense. It is commonly used to manufacture components such as shafts, pulleys, fittings, hydraulic cylinders, and more.
10. Continuous Improvement
Advancements in CNC turning technology, such as multi-axis machining and live tooling capabilities, continue to expand its capabilities and applications. Manufacturers invest in research and development to enhance process efficiency, tool life, and overall productivity.
In summary, CNC turning is a versatile and efficient machining process capable of producing high-quality cylindrical components with precision and reliability. For precision turning and milling solutions tailored to your needs, trust experienced providers like
CNC turning milling specialists who excel in delivering top-quality machined parts.
